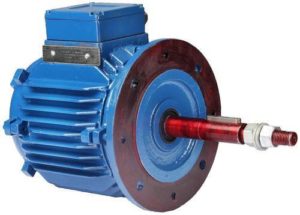

Cooling Tower Motor
The Cooling Tower Motor from SUPERFLOW COOLING TOWERS PVT. LTD. is specially engineered for continuous, reliable performance in humid and demanding cooling tower environments. Built with precision and durability in mind, these motors feature pressure die-cast rotors, vacuum-impregnated windings, and IP55 protection, ensuring long life and trouble-free operation. Designed for energy efficiency, high torque output, and low noise, this motor is the perfect choice for smooth and efficient cooling tower operation.
Product Details:
- Rotors: Pressure die-cast and dynamically balanced
- Connections: Electric brazing to prevent loose connections
- Winding: Vacuum impregnated and humidity-protected
- Bearings: Shrunk fit with ground bearing seats for precision
- Mounting: V1 (Shaft downward position)
- Relative Humidity: Up to 90%
- Flange: Type B (as per IS – 2223)
- Shaft Material: Stainless steel AISI – 410 (optional)
- Protection: IP55 degree with Class ‘F’ insulation
- Efficiency: High power factor and low operating temperature
- Custom Options: Shaft extension and lock nuts available
Key Features:
- Rugged construction for industrial applications
- Designed to handle wide voltage fluctuations
- Energy-efficient with reduced power consumption
- Corrosion and moisture-resistant build for long life
- Ideal for continuous cooling tower operation
